IM BRAHM Biogas Plant - Krieg & Fischer Ingenieure GmbH

IM BRAHM Biogas Plant

Location	Germany
Construction Period	2005
Input	Pig manure, kitchen waste, horse dung
Fermenter	Concrete Tank, 1,205 m³
Gas utilization	Gas engine, 2 x 190 kW_el + 2 x 190 kW_el extensions
Extension	2010: Additional digester and a third CHP (190 kW_el) 2011: Fourth CHP (190 kW_el) 2013: Storage tank with gas holder roof (6,000 m³) 2016: Digestate separation 2024: Expansion to include a biogas upgrading plant for biomethane
Specials	Digester mixed with side-mounted mixers, gas holders on top of all tanks, secondary digester, storage tanks, heat utilisation (pasteurisation kitchen waste, heating of buildings and the nearby Schlosshotel)
Responsibility	Basic evaluation, pre-, draft-, approval and execution planning, tendering, participating in contract awarding process, site management/project controlling, start-up
News	03.09.2024: From pig farmering to a successful food recycling and biomethane company
Download Datasheet	111 Datenblatt Im Brahm en.pdf
Web	http://www.bioenergie-ruhrtal.de

Send URL of this reference

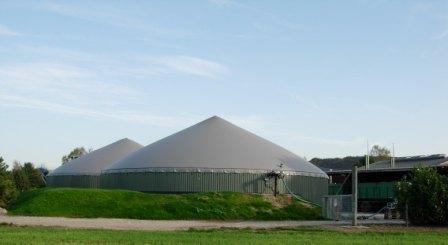

Biogasanlage im Brahm zur Vergärung von Speisresten — Biogas Plant im Brahm: Digester and secondary digester with gas holder roof

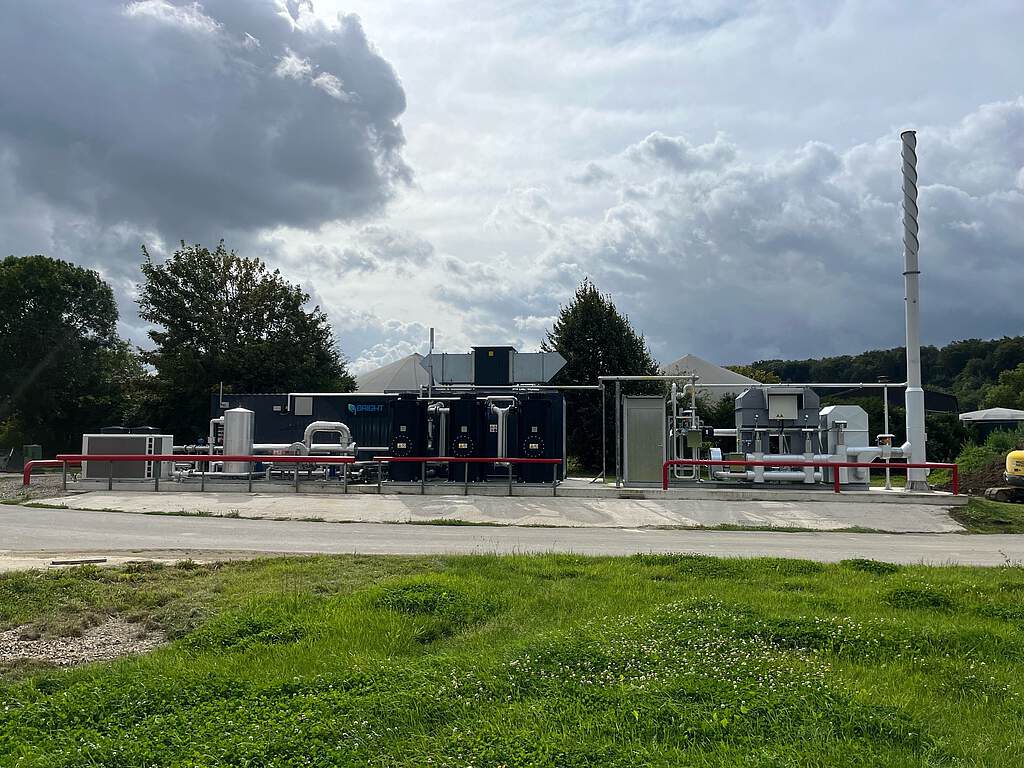

Biogasupgrading to biomethane

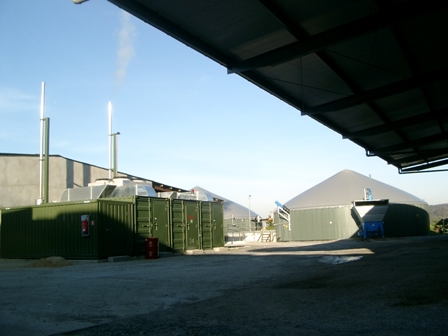

Biogas Plant im Brahm: CHP in container

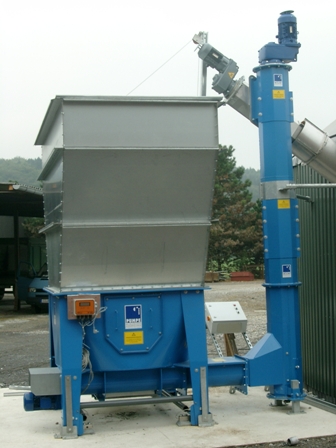

Biogas Plant im Brahm: Solid input device

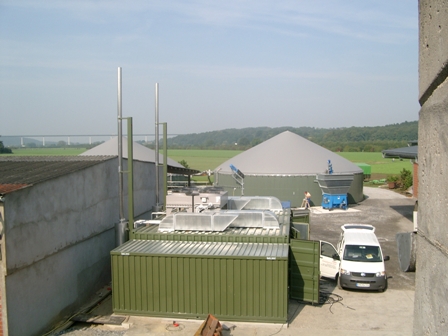

Biogas Plant im Brahm: CHP in container
